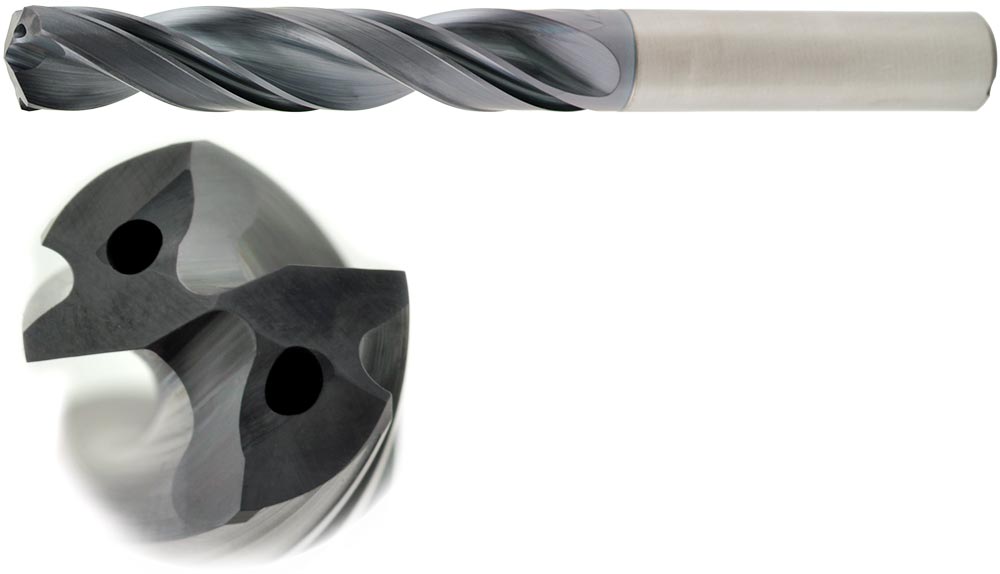

VHM HPC Bohrreibahle 5xD mit IK Ø 9,0 mm, H7, Typ BR100-05IK
126,00 €
entspricht 149,94 € inkl. MwSt. (19%) zzgl. Versandkosten
Produktnummer:
20119216
Produktinformationen "VHM HPC Bohrreibahle 5xD mit IK Ø 9,0 mm, H7, Typ BR100-05IK"
VHM HPC Bohrreibahle 5xD mit Innenkühlung IK, Typ BR100-05IK-HA
Diese VHM Bohrreibahle ist für die Bearbeitung von Stahl und Guss ausgelegt.
Die Spitzengeometrie mit 140° Spitzenwinkel garantiert ein sicheres Zentrieren.
- 5xD
- mit Innenkühlung
- Schaft: HA zylindrisch, Toleranz h6
VHM Bohrreibahle in 3xD BR100-03IK
| Maße | |||||||
| Toleranz | Ødc | lc | l2 | l1 | Ød1 | Art.-Nr. | |
|---|---|---|---|---|---|---|---|
| m7 | h6 | ||||||
| ± 0,003 | 3,97 | 29 | 36 | 74 | 6 | BR100-05IK-03.970HA | |
| ± 0,003 | 3,98 | 29 | 36 | 74 | 6 | BR100-05IK-03.980HA | |
| ± 0,003 | 3,99 | 29 | 36 | 74 | 6 | BR100-05IK-03.990HA | |
| ± 0,003 | 4,0 | 29 | 36 | 74 | 6 | BR100-05IK-04.000HA | |
| H7 | 4,0 | 29 | 36 | 74 | 6 | BR100-05IK-04.000HA | |
| ± 0,003 | 4,01 | 29 | 36 | 74 | 6 | BR100-05IK-04.010HA | |
| ± 0,003 | 4,02 | 29 | 36 | 74 | 6 | BR100-05IK-04.020HA | |
| ± 0,003 | 4,03 | 29 | 36 | 74 | 6 | BR100-05IK-04.030HA | |
| ± 0,003 | 4,97 | 35 | 44 | 82 | 6 | BR100-05IK-04.970HA | |
| ± 0,003 | 4,98 | 35 | 44 | 82 | 6 | BR100-05IK-04.980HA | |
| ± 0,003 | 4,99 | 35 | 44 | 82 | 6 | BR100-05IK-04.990HA | |
| ± 0,003 | 5,0 | 35 | 44 | 82 | 6 | BR100-05IK-05.000HA | |
| H7 | 5,0 | 35 | 44 | 82 | 6 | BR100-05IK-05.000HA | |
| ± 0,003 | 5,01 | 35 | 44 | 82 | 6 | BR100-05IK-05.010HA | |
| ± 0,003 | 5,02 | 35 | 44 | 82 | 6 | BR100-05IK-05.020HA | |
| ± 0,003 | 5,03 | 35 | 44 | 82 | 6 | BR100-05IK-05.030HA | |
| ± 0,003 | 5,97 | 35 | 44 | 82 | 6 | BR100-05IK-05.970HA | |
| ± 0,003 | 5,98 | 35 | 44 | 82 | 6 | BR100-05IK-05.980HA | |
| ± 0,003 | 5,99 | 35 | 44 | 82 | 6 | BR100-05IK-05.990HA | |
| ± 0,003 | 6,0 | 35 | 44 | 82 | 6 | BR100-05IK-06.000HA | |
| H7 | 6,0 | 35 | 44 | 82 | 6 | BR100-05IK-06.000HA | |
| ± 0,003 | 6,01 | 35 | 44 | 82 | 6 | BR100-05IK-06.010HA | |
| ± 0,003 | 6,02 | 35 | 44 | 82 | 6 | BR100-05IK-06.020HA | |
| ± 0,003 | 6,03 | 35 | 44 | 82 | 6 | BR100-05IK-06.030HA | |
| H7 | 7,0 | 43 | 53 | 91 | 8 | BR100-05IK-07.000HA | |
| ± 0,003 | 7,97 | 43 | 53 | 91 | 8 | BR100-05IK-07.970HA | |
| ± 0,003 | 7,98 | 43 | 53 | 91 | 8 | BR100-05IK-07.980HA | |
| ± 0,003 | 7,99 | 43 | 53 | 91 | 8 | BR100-05IK-07.990HA | |
| ± 0,003 | 8,0 | 43 | 53 | 91 | 8 | BR100-05IK-08.000HA | |
| H7 | 8,0 | 43 | 53 | 91 | 8 | BR100-05IK-08.000HA | |
| ± 0,003 | 8,01 | 43 | 53 | 91 | 8 | BR100-05IK-08.010HA | |
| ± 0,003 | 8,02 | 43 | 53 | 91 | 8 | BR100-05IK-08.020HA | |
| ± 0,003 | 8,03 | 43 | 53 | 91 | 8 | BR100-05IK-08.030HA | |
| H7 | 9,0 | 49 | 61 | 103 | 10 | BR100-05IK-09.000HA | |
| ± 0,003 | 9,97 | 49 | 61 | 103 | 10 | BR100-05IK-09.970HA | |
| ± 0,003 | 9,98 | 49 | 61 | 103 | 10 | BR100-05IK-09.980HA | |
| ± 0,003 | 9,99 | 49 | 61 | 103 | 10 | BR100-05IK-09.990HA | |
| ± 0,003 | 10,0 | 49 | 61 | 103 | 10 | BR100-05IK-10.000HA | |
| H7 | 10,0 | 49 | 61 | 103 | 10 | BR100-05IK-10.000HA | |
| ± 0,003 | 10,01 | 49 | 61 | 103 | 10 | BR100-05IK-10.010HA | |
| ± 0,003 | 10,02 | 49 | 61 | 103 | 10 | BR100-05IK-10.020HA | |
| ± 0,003 | 10,03 | 49 | 61 | 103 | 10 | BR100-05IK-10.030HA | |
| ± 0,003 | 11,97 | 56 | 71 | 118 | 12 | BR100-05IK-11.970HA | |
| ± 0,003 | 11,98 | 56 | 71 | 118 | 12 | BR100-05IK-11.980HA | |
| ± 0,003 | 11,99 | 56 | 71 | 118 | 12 | BR100-05IK-11.990HA | |
| ± 0,003 | 12,0 | 56 | 71 | 118 | 12 | BR100-05IK-12.000HA | |
| H7 | 12,0 | 56 | 71 | 118 | 12 | BR100-05IK-12.000HA | |
| ± 0,003 | 12,01 | 56 | 71 | 118 | 12 | BR100-05IK-12.010HA | |
| ± 0,003 | 12,02 | 56 | 71 | 118 | 12 | BR100-05IK-12.020HA | |
| ± 0,003 | 12,03 | 56 | 71 | 118 | 12 | BR100-05IK-12.030HA | |
| H7 | 14,0 | 60 | 77 | 124 | 14 | BR100-05IK-14.000HA | |
| H7 | 16,0 | 63 | 83 | 133 | 16 | BR100-05IK-16.000HA | |
| H7 | 18,0 | 71 | 93 | 143 | 18 | BR100-05IK-18.000HA | |
| H7 | 20,0 | 77 | 101 | 153 | 20 | BR100-05IK-20.000HA | |
| Anwendung: | Durchgangsloch, Pakete Bohren, Querbohrungen, Sackloch, Schraeger Austritt |
|---|---|
| Bohrtiefe xD: | 5xD |
| Einsatzgebiet: | K - Guss, P - Stahl |
| Schneiden: | z2 |
| VHM/HSS(E): | vhm |
| Schneidenlänge: | 49 |
| Durchmesser: | 9,0 |
| Beschichtung: | beschichtet |
| Schaftform: | HA |
